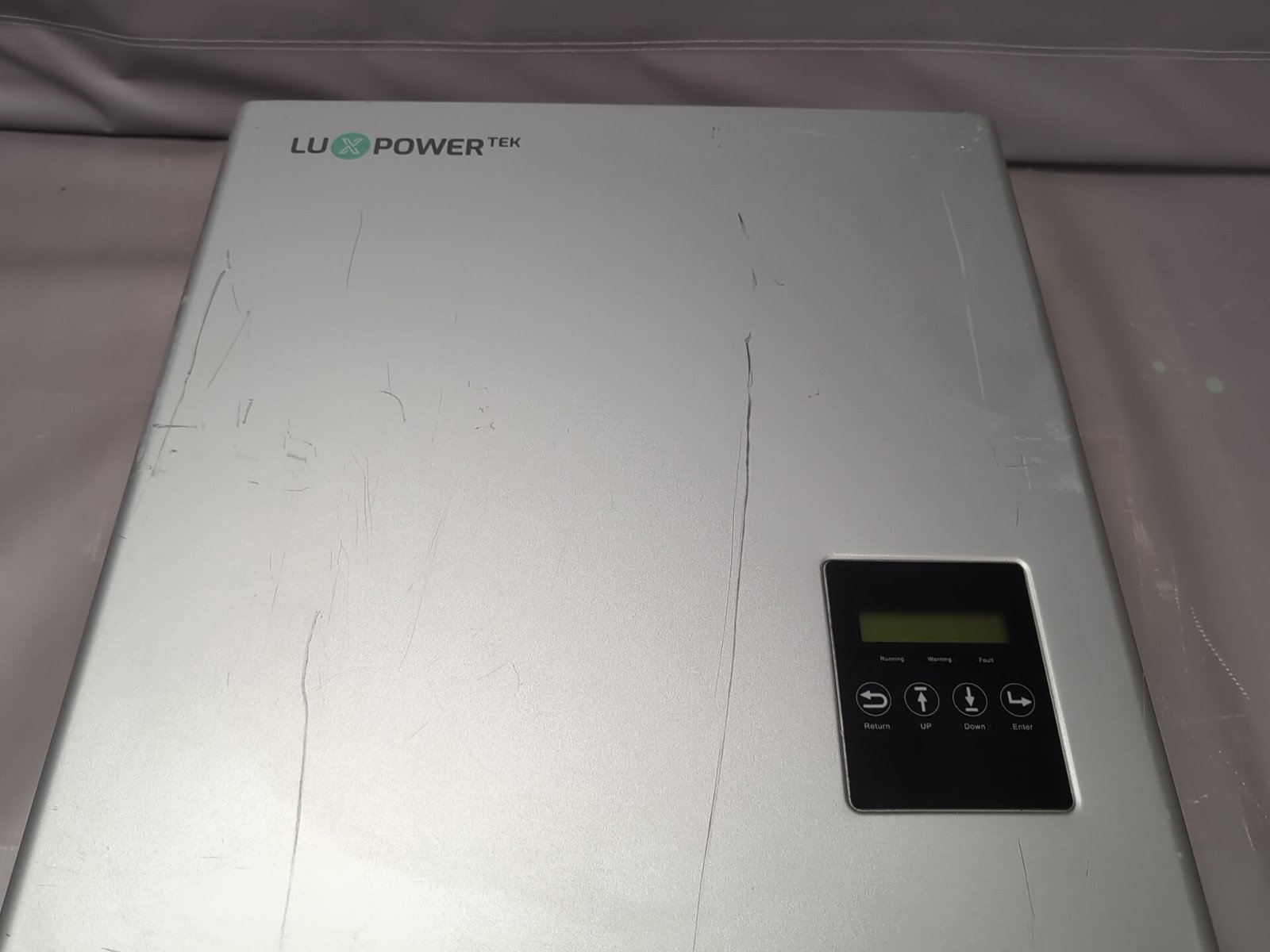

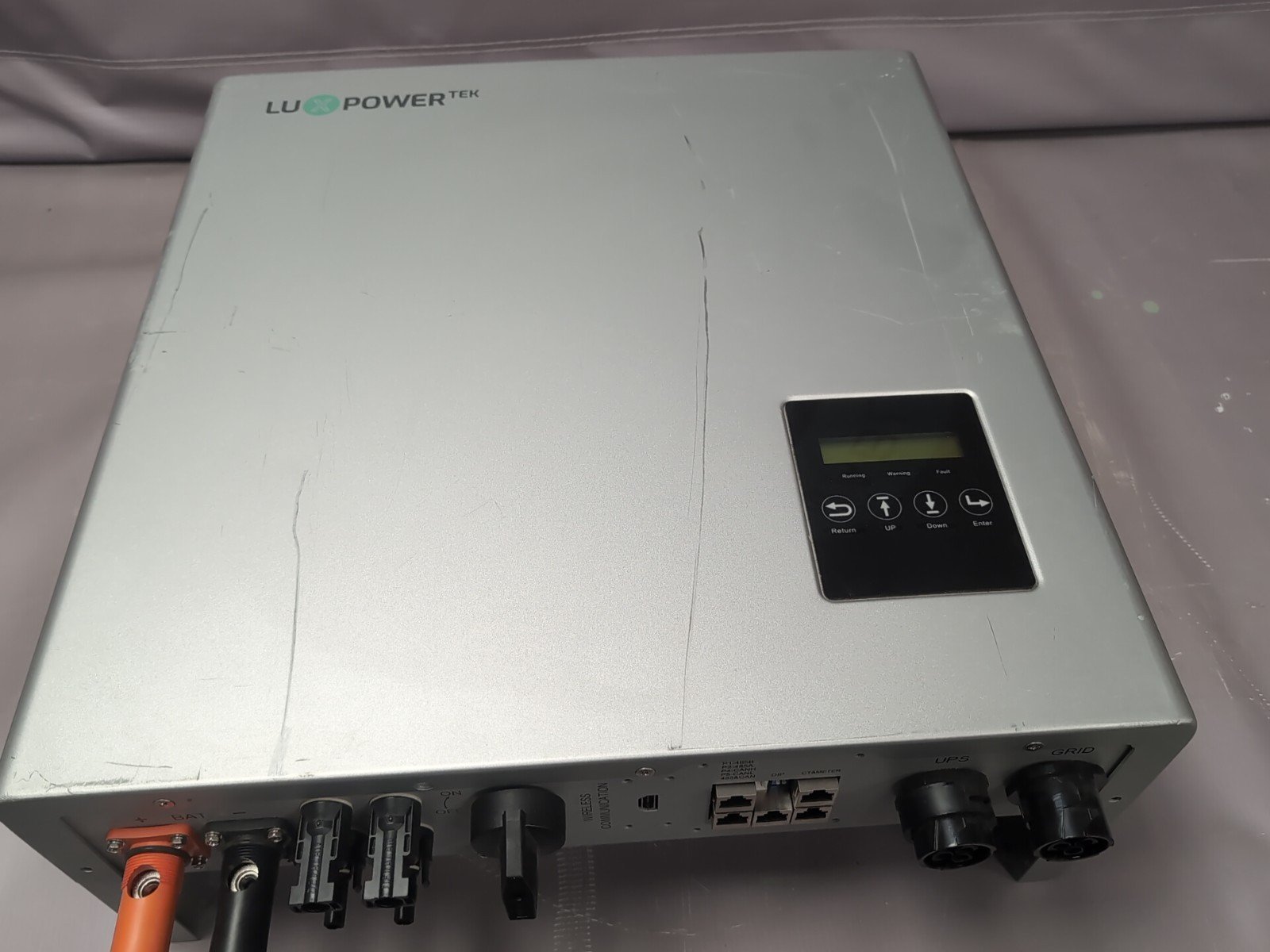

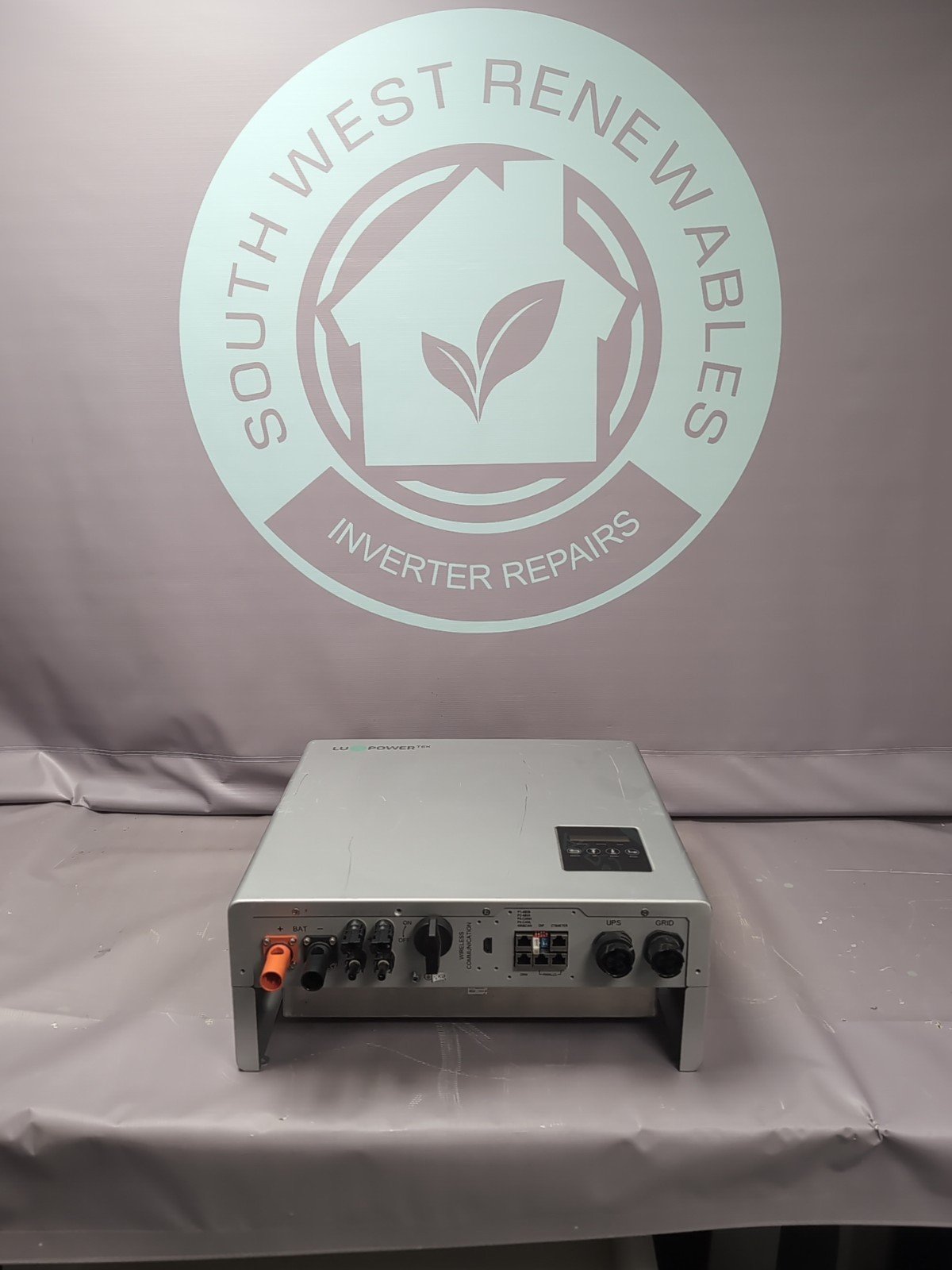

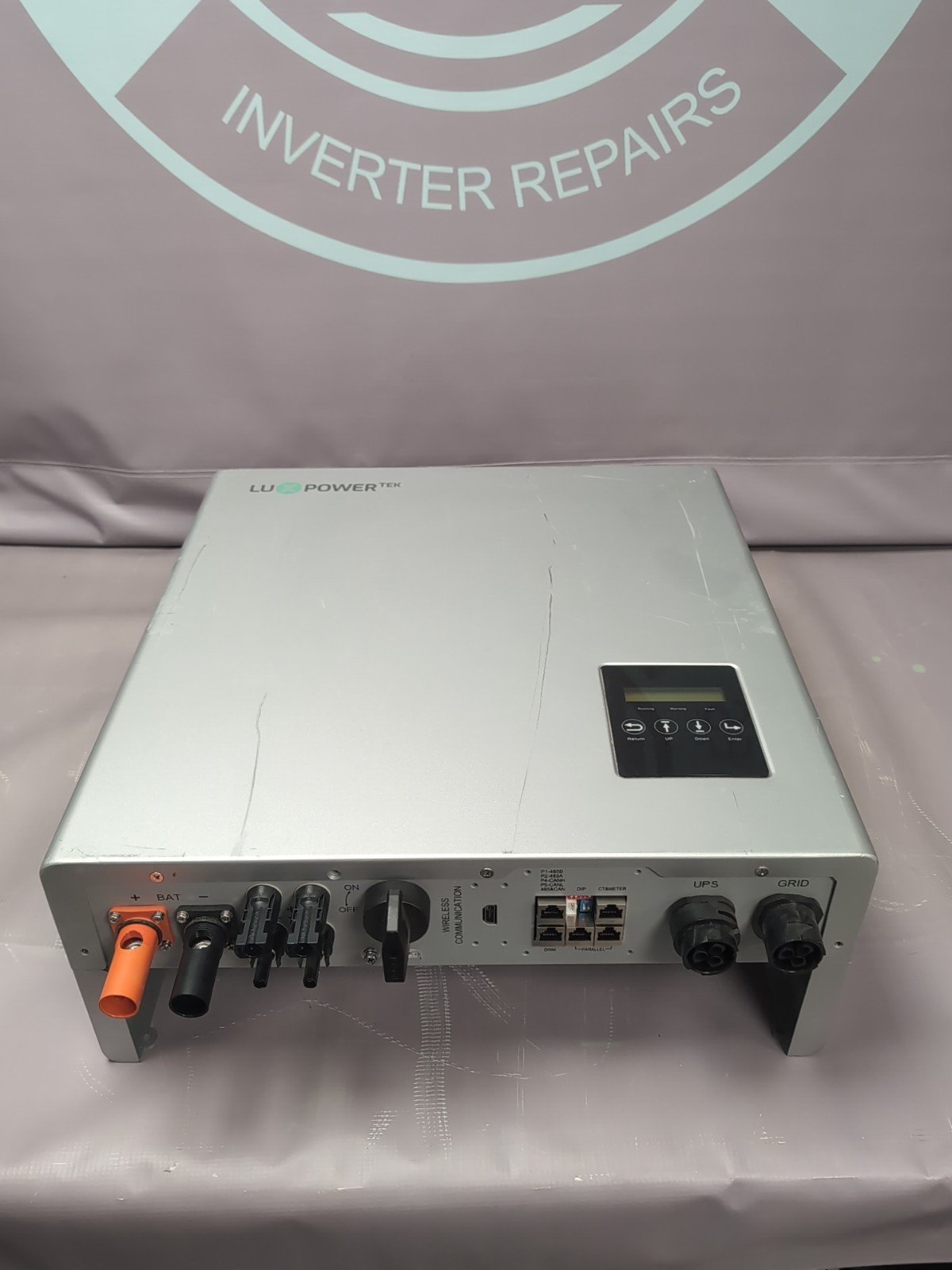

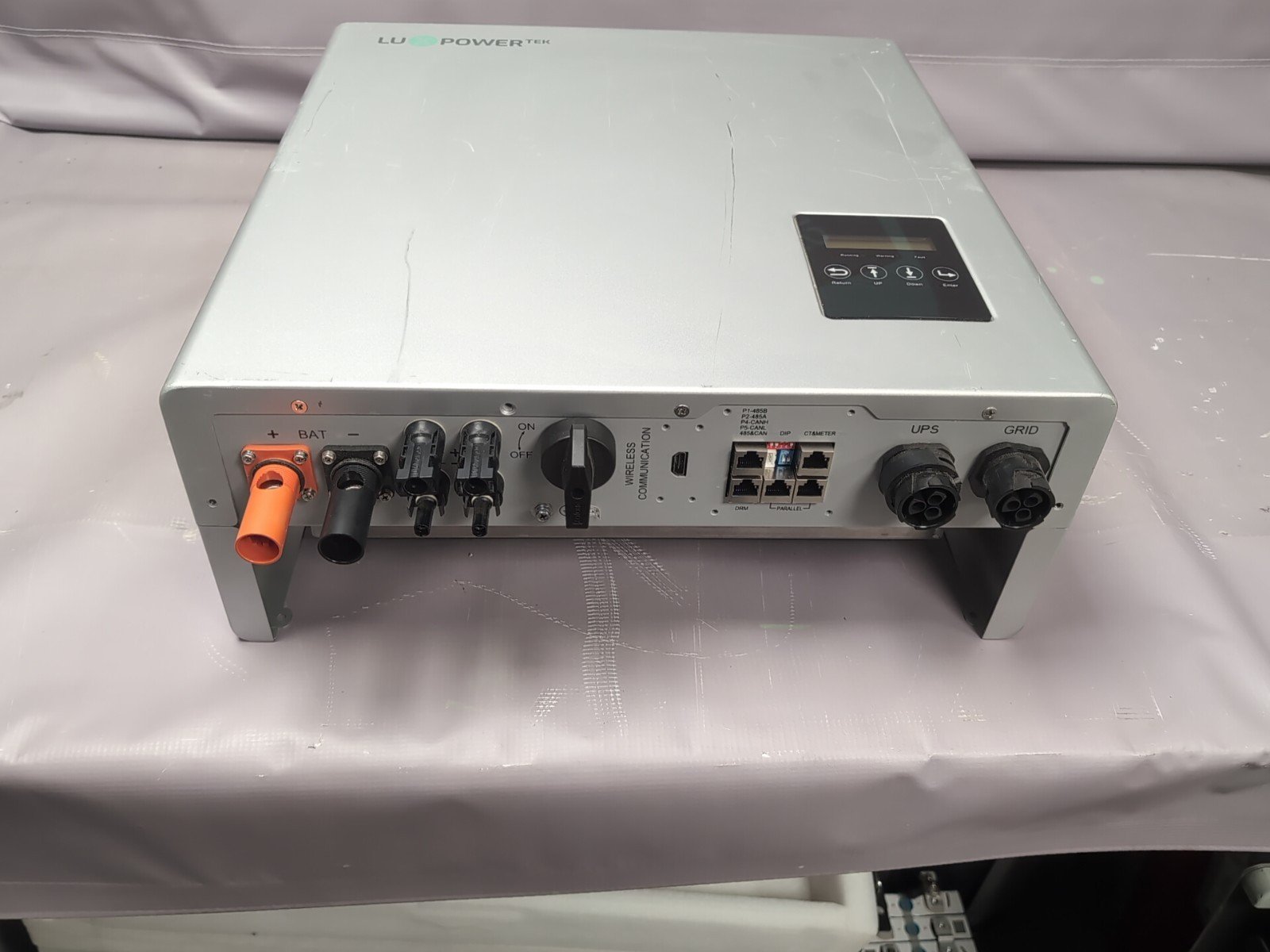

⚡ Lux Power 3.6kW Hybrid Inverter

Tested with a Pylontech battery

This Lux Power 3.6kW Hybrid Inverter is a powerful and flexible solution for solar PV and battery storage systems. Fully tested in our workshop, including operation with a Pylontech lithium battery, this unit is ideal for both DIY installers and professional system upgrades.

Ideal for a like for like replacement for people who have the ct clamps etc

🔧 Solar Input Specifications

• Max. DC Input Power: 7000W

• Nominal DC Input Voltage: 360V DC

• DC Voltage Range: 100–550V DC

• MPPT Voltage Range: 120–500V DC

• Start‑up Voltage: 140V DC

• MPPT Trackers: 2

• Max. DC Input Current: 12.5A / 12.5A

• Max. Short‑Circuit Current: 13.7A / 13.7A

• Max. Input Power per MPPT: 4000W / 4000W

• Max. Feedback Current: 0A

🔋 Battery Input/Output

• Compatible Batteries: Lithium‑ion / Lead‑acid

• Nominal Battery Voltage: 48V DC

• Battery Voltage Range: 40–60V DC

• Max. Charge/Discharge Current: 80A / 80A

• Max. Charge/Discharge Power: 3600W / 3600W

• Charging Curve: 3‑stage

• Max. Charge Voltage: 59V

• Depth of Discharge: 80% (Li‑ion) / 50% (Lead‑acid)

• Supported Battery Capacity: 2–20kWh

⚡ AC Input/Output

• Nominal AC Output Power: 3600W

• Max. AC Output Power: 3600VA

• Max. AC Output Current: 16A

• Nominal AC Voltage: 230V

• AC Voltage Range: 180–270V

• Nominal Frequency: 50/60Hz

• Frequency Range: 45–55Hz / 55–65Hz

• Power Factor: Adjustable 0.8 leading to 0.8 lagging

• THDI: <3%

• Inrush Current: 10A / 10µs

• Max. Output Fault Current: 50A / 20µs

• Over‑current Protection: 20A

🌞 Key Features

• Supports up to 7kW PV input

• Works with 1 to 8 lithium batteries

• Add multiple controllers for higher charge/discharge rates

• Advanced weather‑compensation programming

• 0.01s seamless switchover

• Max charge/discharge rate: 66A

• Lightweight: 25kg

• Quiet operation: <25dB

• IP65 weather‑resistant

• Not tested with wifi
