Description

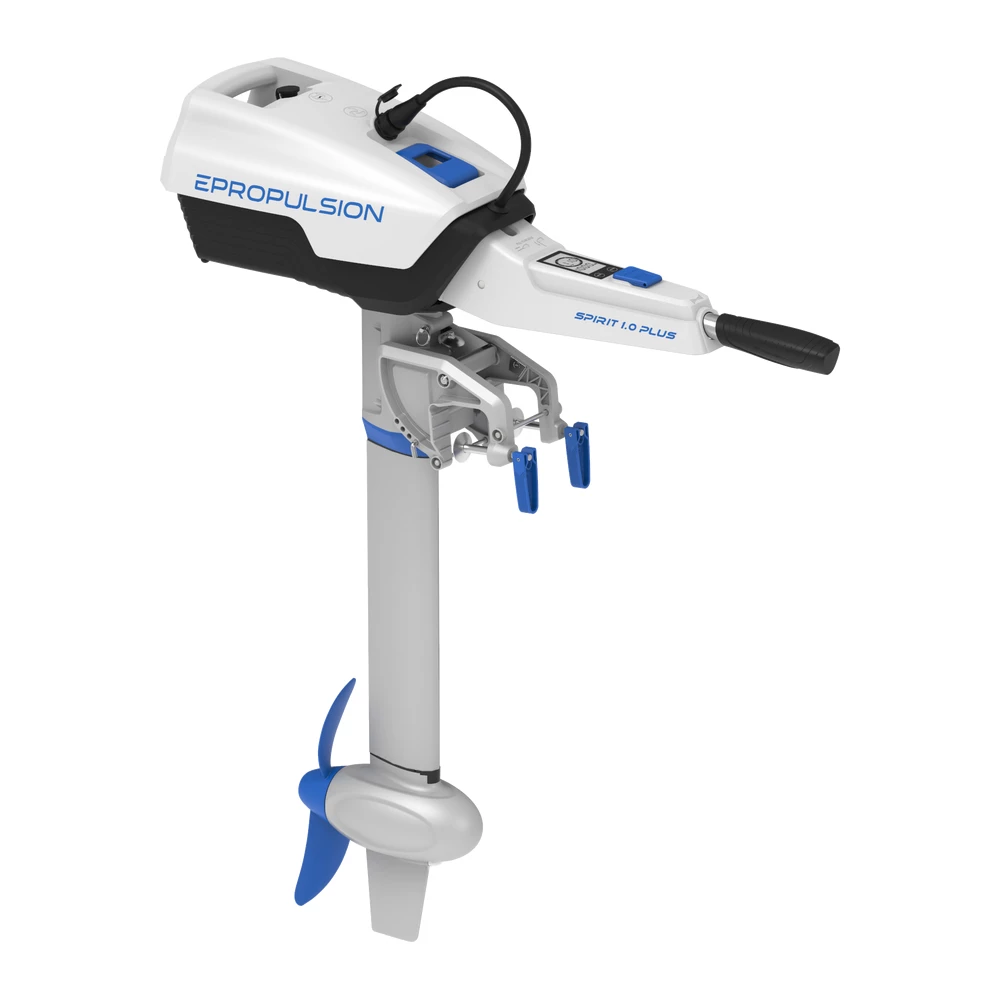

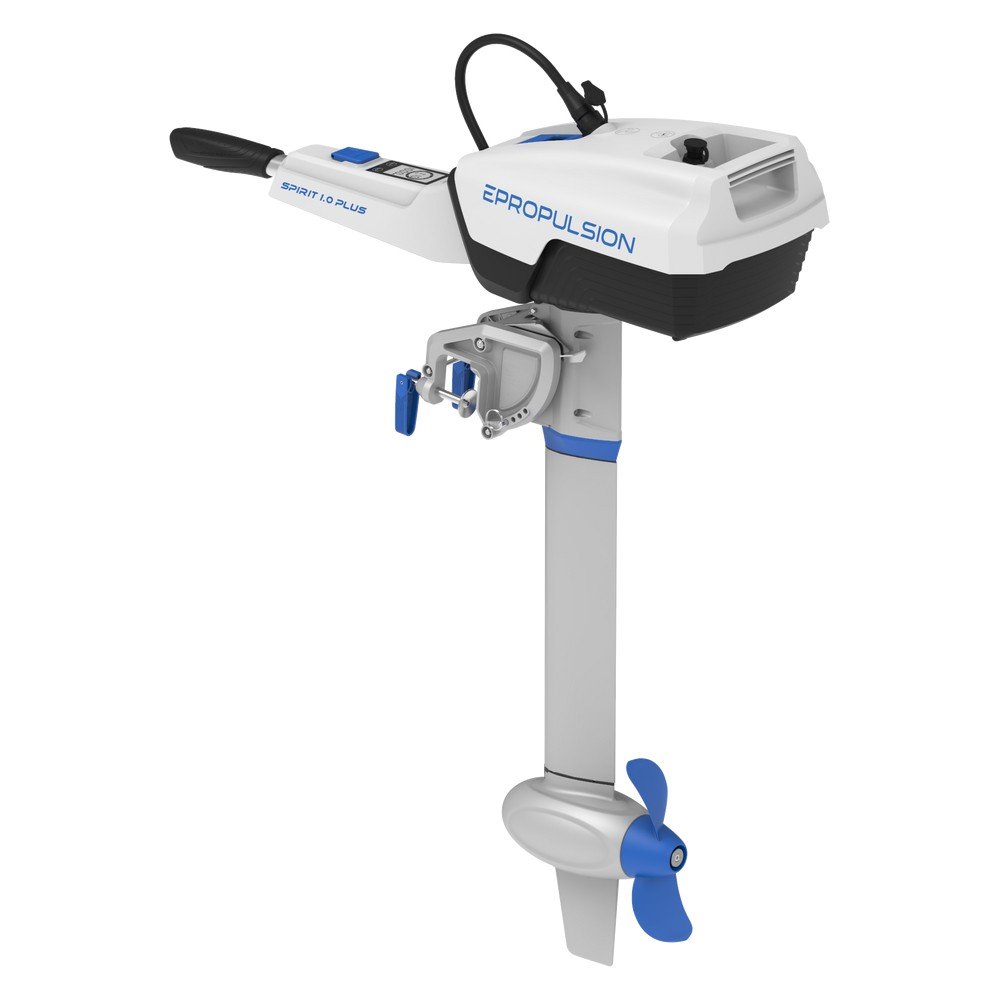

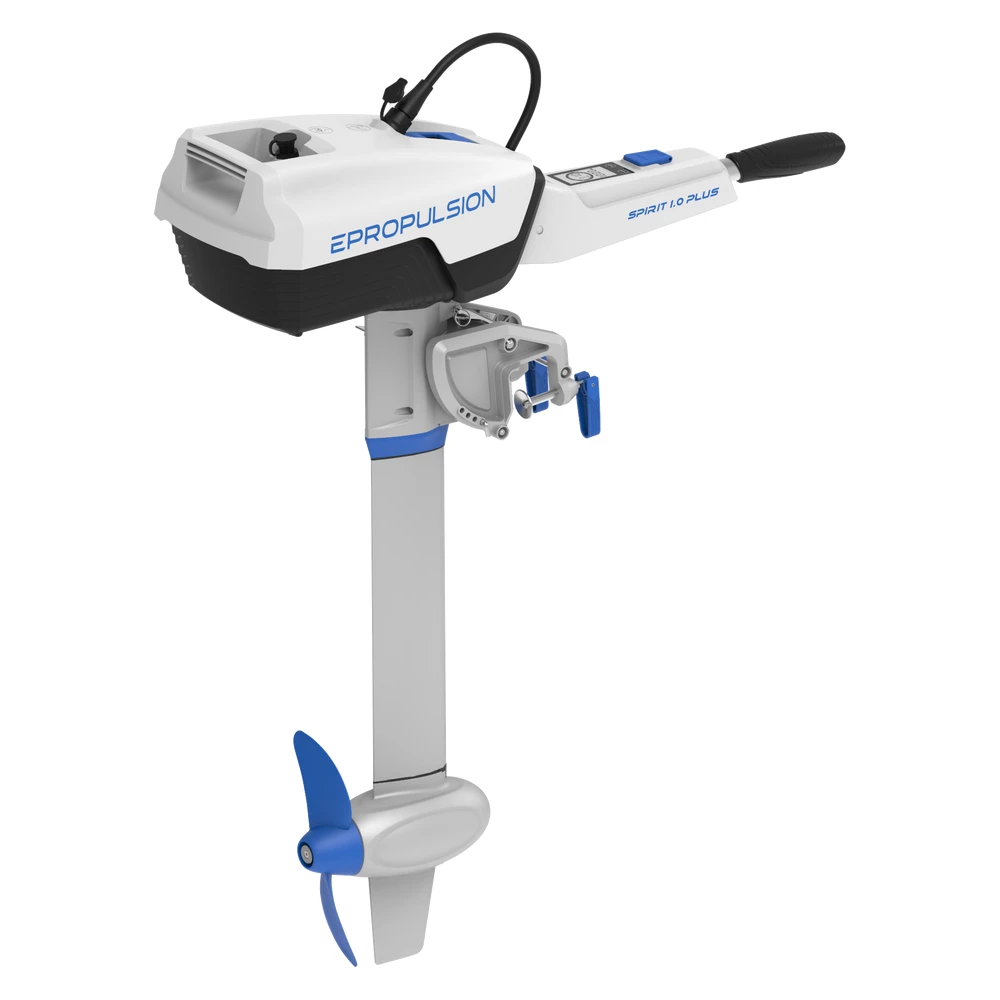

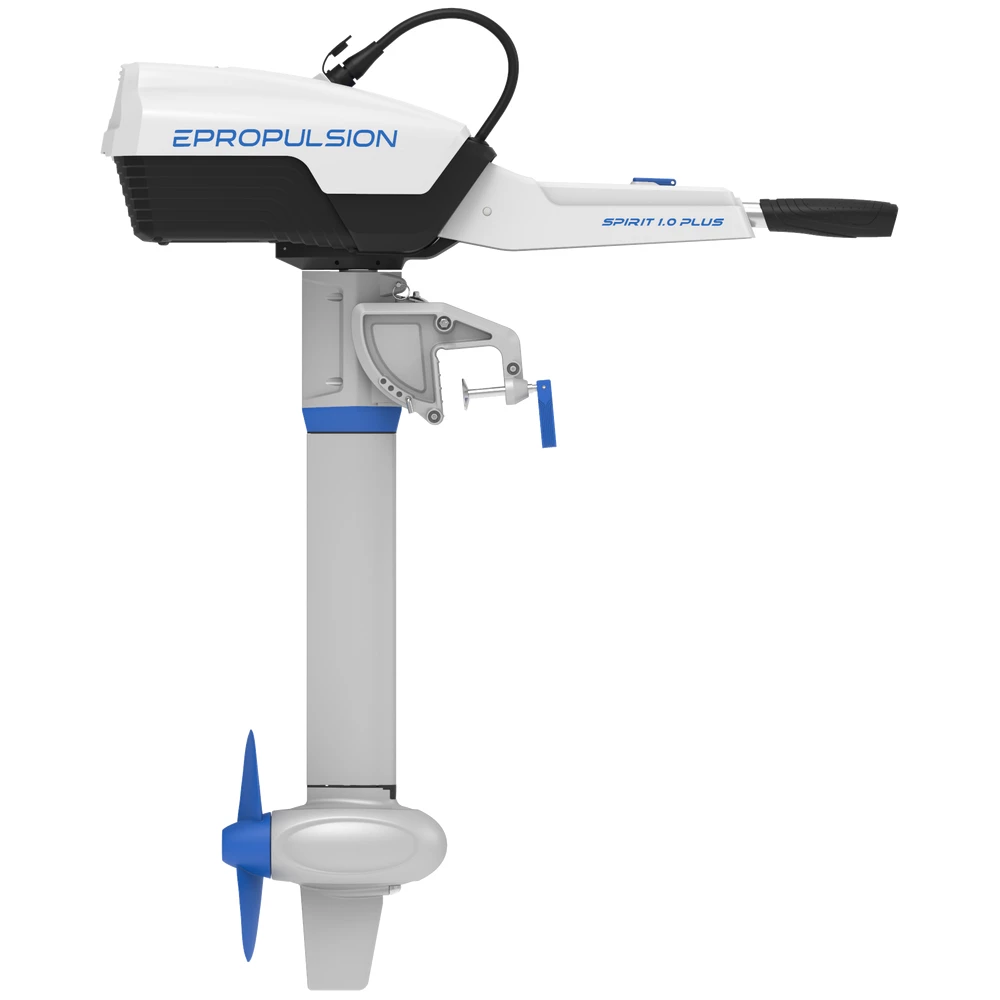

The Spirit 1.0 Plus is a 1kW (3HP* equivalent) electric outboard motor, ideal for dinghies, fishing vessels, sailboats, and tenders. It features a lightweight, integrated 1,276 Wh lithium battery, providing extended travel distances. Weighing only 11.3 kg (excluding the battery), it ensures easy transport and installation. The motor operates quietly and requires zero maintenance, offering a clean and efficient boating experience.
Key Features:
Digital Operation: Real-time monitoring of power, remaining runtime, battery level, and operating voltage.
Electric Start: One-button start eliminates the need for pull starts.
Magnetic Kill Switch: Ensures safety by stopping the motor in emergencies.
Stepless Throttle Control: Smooth handling in both forward and reverse.
Ambidextrous Operation: Throttle can be operated from either the left or right side.
Designed for Portability
The Spirit 1.0 was designed with portability in mind. Its lightweight yet powerful build ensures easy transport and storage. Perfect for various marine ventures, its compact design is an ideal fit for those needing a versatile and easily movable boating solution.
Battery Technology

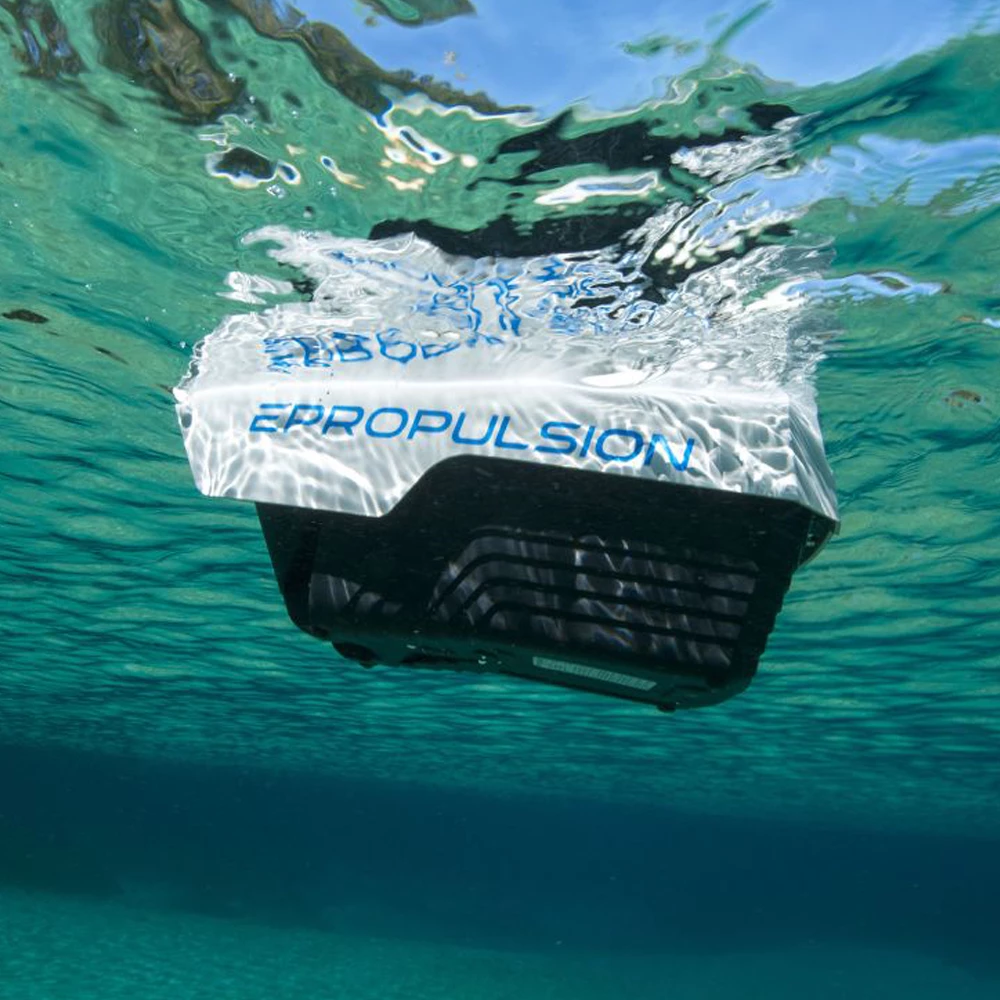

Fuelled by a lightweight 8.7 kg lithium-ion battery with 1276 Wh capacity. Designed for resilience in harsh conditions, this buoyant battery also floats, eliminating worries of losing it at sea. Enjoy a full day on the water with the option to swiftly swap out the built-in battery, or top up by solar whilst you cruise.
Both the Plus and Evo models are compatible with ePropulsion’s E-Series batteries, allowing for extended runtime and flexibility. Optional solar charging accessories are available for on-the-go recharging, enhancing the sustainability of your boating adventures.
Shaft lengths:
Extra Short shaft – most suitable for a transom height of 30-40cm / 11.8-15.7
Short shaft – most suitable for a transom height of 40-50cm / 15.7-19.7 inches
Long shaft – most suitable for a transom height of above 50 cm / 19.7 inches

Performance
At the core of Spirit 1.0 electric outboard motor is a 1kW BLDC motor, equivalent to 3HP*.
Power (W)          Speed (mph/kph)            Runtime (hh:mm)            Range (mile/km)
35                           2.2 / 3.5                                36:25                                     80 / 129
65                           2.7 / 4.3                                19:35                                     53 / 85.3
125                         3.5 / 5.6                                10:00                                     35 / 56
250                         4.4 / 7.1                                5:00                                        22 / 35.5
500                         5.3 / 8.5                                2:30                                        13.3 / 21.3
750                         5.7 / 9.2                                1:40                                        9.5 / 15.3
1,000                     6.2 / 10                                 1:15                                        7.8 / 12.5

Specifications
Power 1kW (3hp equivalent*)
Battery: Floating Spirit Battery Plus, 1276Wh Li-ion Polymer
Input Voltage: 39 -60V
Motor Weight: 10.6 kg
Battery Weight: 8.7 kg
Charging Time: standard charger (included) 8.5 Hrs/ fast charger 3.5 Hrs
External Battery Compatibility:  Yes – E-Series Battery Recommended
Propeller: 11” x 5.8” 2 blade composite
Trim/Tilt Angle: 0,7,14,21/70 degrees
Hydrogeneration: No ( See Evo Model for Hydrogeneration)
Click here for the Technical Drawing showing Dimensions
In the Box
Spirit 1.0 Plus Outboard
Spirit 1.0 Plus Battery
Battery Charger
Kill Switch Fob x 2
Steering Lock Pin x 2
Documentation
* Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.
